- 產品型號：55916848
- 頻率：12.288MHz

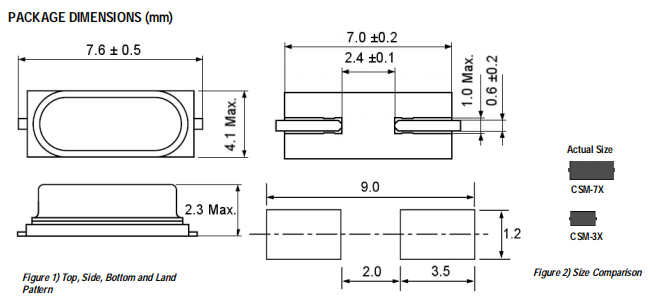

- 尺寸：7.6*4.1mm
- 產品介紹：ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振,美國進口諧振器，石英晶體諧振器，ECS晶振，壹兆電子，型號：CSM-3X系列晶振，編碼為:ECS-122.8-20-3X-EN-T...
-

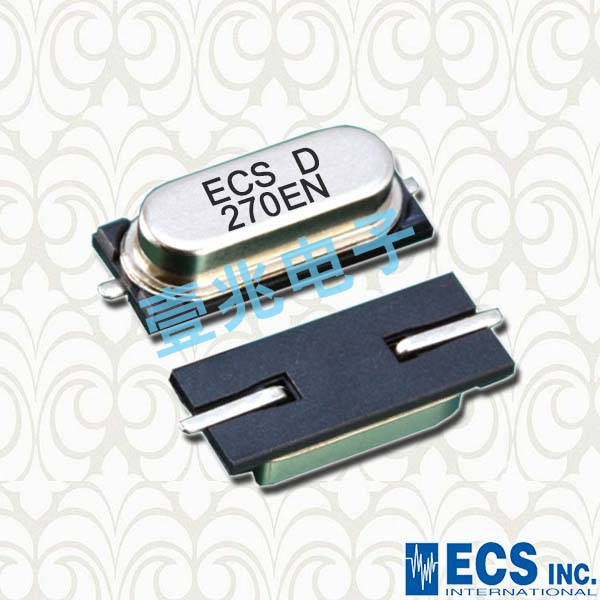

ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振
ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振,美國進口諧振器，石英晶體諧振器，ECS晶振，壹兆電子，型號：CSM-3X系列晶振，編碼為:ECS-122.8-20-3X-EN-TR，頻率：12.288MHz,負載電容：20pf，尺寸：7.6*4.1mm,工作溫度為：-40°C ~ 85°C，無源晶體諧振器，SMD晶振，CSM-3X 石英晶體 CSM-3X是小型低輪廓電阻焊接型 貼片石英晶體。減少CSM-7X（HC-49 usx）的占地面積 SMD）減少50%，應用于手機，電腦，GPS,工業用無線通信設備等。
.jpg)
ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振
| PARAMETERS | CONDITIONS | CSM-3X | UNITS | |||||||||||||||
| MIN | TYP | MAX | ||||||||||||||||
| Frequency Range | fo | 12.288 | MHz | |||||||||||||||
| Frequency Tolerance | at +25°C | ± 30 | ppm | |||||||||||||||
| Frequency Stability ref @+25°C | Standard -10 to +70°C | ± 50 | ppm | |||||||||||||||
| Shunt Capacitance | Co | 7 | pF | |||||||||||||||
| Load Capacitance (CL) | Specify in P/N | 10 | 20 | Series | pF | |||||||||||||
| Drive Level | 100 | µW | ||||||||||||||||
| Operating Temperature | Standard | -10 | +70 | °C | ||||||||||||||
| Storage Temperature | -40 | +85 | °C | |||||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | |||||||||||||||
.jpg)
ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振
.png)
.png)
| Manufacturer Part Number原廠編碼 | Manufacturer廠家 | Series型號 | Frequency |
| ECS-120-20-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | 25MHz |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | 12MHz |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | 16MHz |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | 14.31818MHz |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | 14.7456MHz |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | 18.432MHz |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | 20MHz |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | 24.576MHz |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | 28.63636MHz |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | 30MHz |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | 40MHz |
| ECS-49-20-5PX-TR | ECS晶振 | CSM-7X | 4.9152MHz |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | 16MHz |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | 12.288MHz |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | 14.7456MHz |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | 25MHz |
| ECS-50-20-5PX-TR | ECS晶振 | CSM-7X | 5MHz |
| ECS-120-18-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-40-20-5PX-TR | ECS晶振 | CSM-7X | 4MHz |
| ECS-80-18-5PX-TR | ECS晶振 | CSM-7X | 8MHz |
| ECS-184-18-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-147.4-20-5PX-TR | ECS晶振 | CSM-7X | 14.7456MHz |
| ECS-160-20-5PX-TR | ECS晶振 | CSM-7X | 16MHz |
| ECS-245.7-20-5PX-TR | ECS晶振 | CSM-7X | 24.576MHz |
| ECS-250-18-5PX-F-TR | ECS晶振 | CSM-7X | 25MHz |
| ECS-240-12-5PX-TR | ECS晶振 | CSM-7X | 24MHz |
| ECS-36-20-5PX-TR | ECS晶振 | CSM-7X | 3.6864MHz |
| ECS-100-18-5PX-TR | ECS晶振 | CSM-7X | 10MHz |
| ECS-98.3-20-5PX-TR | ECS晶振 | CSM-7X | 9.8304MHz |
| ECS-184-20-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-35-17-5PX-TR | ECS晶振 | CSM-7X | 3.579545MHz |
| ECS-110.5-S-5PX-TR | ECS晶振 | CSM-7X | 11.0592MHz |
| ECS-200-20-5PX-TR | ECS晶振 | CSM-7X | 20MHz |
| ECS-36-S-5PX-TR | ECS晶振 | CSM-7X | 3.6864MHz |
| ECS-41-20-5PX-TR | ECS晶振 | CSM-7X | 4.096MHz |
| ECS-200-16-5PX-TR | ECS晶振 | CSM-7X | 20MHz |
| ECS-240-20-5PX-TR | ECS晶振 | CSM-7X | 24MHz |
| ECS-60-32-5PX-TR | ECS晶振 | CSM-7X | 6MHz |
| ECS-73-20-5PX-TR | ECS晶振 | CSM-7X | 7.3728MHz |
| ECS-92.1-20-5PX-TR | ECS晶振 | CSM-7X | 9.216MHz |
| ECS-40-S-5PX-TR | ECS晶振 | CSM-7X | 4MHz |
| ECS-160-S-5PX-TR | ECS晶振 | CSM-7X | 16MHz |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | 12MHz |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | 20MHz |
| ECS-60-20-5PX-TR | ECS晶振 | CSM-7X | 6MHz |
| ECS-184-S-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-50-S-5PX-TR | ECS晶振 | CSM-7X | 5MHz |
| ECS-110.5-32-5PX-TR | ECS晶振 | CSM-7X | 11.0592MHz |
| ECS-61-32-5PX-TR | ECS晶振 | CSM-7X | 6.144MHz |
| ECS-120-32-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-270-18-5PX-F-TR | ECS晶振 | CSM-7X | 27MHz |
| ECS-49-S-5PX-TR | 進口晶振 | CSM-7X | 4.9152MHz |
| ECS-100-S-5PX-TR | ECS晶振 | CSM-7X | 10MHz |
| ECS-147.4-S-5PX-TR | ECS晶振 | CSM-7X | 14.7456MHz |
| ECS-135.6-12-5PX-TR | ECS晶振 | CSM-7X | 13.56MHz |
| ECS-120-S-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | 12.288MHz |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | 32.768kHz |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | 32.768kHz |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | 32.768kHz |
| ECS-.327-7-34B-TR | ECS 晶振 | ECX-31B | 32.768kHz |
| ECS-.327-6-17X-TR | ECS 晶振 | ECX-306X | 32.768kHz |
| ECS-200-18-5PX-TR | ECS 晶振 | CSM-7X | 20MHz |
| ECS-.327-12.5-17X-C-TR | ECS 晶振 | ECX-306X | 32.768kHz |
| ECS-.327-CDX-1128 | ECS 晶振 | ECS-CDX | 32.768kHz |
| ECS-.327-7-38-TR | ECS 晶振 | ECX-71 | 32.768kHz |
| ECS-80-18-5PX-JEM-TR | ECS 晶振 | CSM-7X | 8MHz |
| ECS-49-18-5PX-JEM-TR | ECS 晶振 | CSM-7X | 4.9152MHz |
| ECS-.327-12.5-13FLX-C | ECS 晶振 | ECS-2x6-FLX | 32.768kHz |
| ECS-35-17-5PXDN-TR | ECS 晶振 | CSM-7X-DN | 3.579545MHz |
| ECS-120-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 12MHz |
| ECS-135.6-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 13.56MHz |
| ECS-147.4-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 14.7456MHz |
| ECS-160-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 16MHz |
| ECS-163.8-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 16.384MHz |
| ECS-184-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 18.432MHz |
| ECS-240-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 24MHz |
| ECS-250-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 25MHz |
| ECS-270-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 27MHz |
| ECS-286.3-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 28.63636MHz |
| ECS-300-12-33Q-JES-TR | ECS 晶振 | ECX-33Q | 30MHz |
| ECS-40-20-5PXDN-TR | ECS 晶振 | CSM-7X-DN | 4MHz |
| ECS-80-18-5PXDN-TR | ECS 晶振 | CSM-7X-DN | 8MHz |
| ECS-3X8X | ECS 晶振 | ECS-3X8X | 32.768kHz |
| ECS-.327-12.5-13 | ECS 晶振 | ECS-2x6 | 32.768kHz |
| ECS-3X8 | ECS 晶振 | ECS-3X8 | 32.768kHz |
| ECS-40-18-5PXEN-TR | ECS 晶振 | CSM-7X | 4MHz |
| ECS-76.8-18-5PXEN-TR | ECS 晶振 | CSM-7X | 7.68MHz |
| ECS-98.3-18-5PXEN-TR | ECS 晶振 | CSM-7X | 9.8304MHz |
| ECS-42-18-5PXEN-TR | ECS 晶振 | CSM-7X | 4.194304MHz |
| ECS-110-18-5PXEN-TR | ECS 晶振 | CSM-7X | 11MHz |
| ECS-110.5-18-5PXEN-TR | ECS 晶振 | CSM-7X | 11.0592MHz |
| ECS-160-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 16MHz |
| ECS-240-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 24MHz |
| ECS-250-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 25MHz |
| ECS-260-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 26MHz |
| ECS-270-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 27MHz |
| ECS-320-10-36Q-ES-TR | ECS 晶振 | ECX-2236Q | 32MHz |
| ECS-.327-12.5-34B-C-TR | ECS 晶振 | ECX-31B | 32.768kHz |
| ECS-.327-9-34B-TR | ECS 晶振 | ECX-31B | 32.768kHz |
| ECS-135.6-20-3X-TR | ECS 晶振 | CSM-3X | 13.56MHz |
| ECS-196.6-20-3X-TR | ECS 晶振 | CSM-3X | 19.6608MHz |
| ECS-184-20-3X-EN-TR | ECS 晶振 | CSM-3X | 18.432MHz |
| ECS-286.3-20-3X-TR | ECS 晶振 | CSM-3X | 28.63636MHz |
